Specifications for

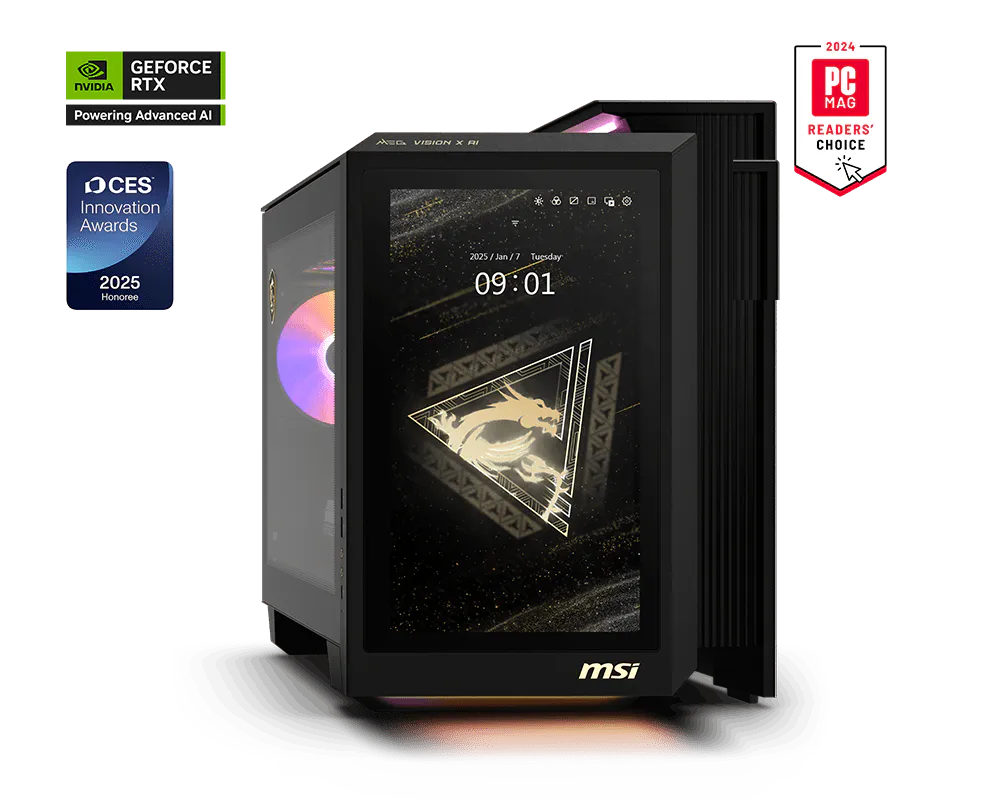

MEG Vision X AI 2nd
MEG Vision X AI 2NVV9-028XRU
MEG Vision X AI 2NVV7-029XRU
MEG Vision X AI 2NVR7-030XRU
MEG Vision X AI 2NVV7-066RU
Marketing Name
MEG Vision X AI 2NVV9-028XRU
CPU Cooler
Liquid cooling
Communications
Wi-Fi 7+BT
Processor
Intel Core Ultra 9 processor 285K
3.7GHz
( 36 MB Intel® Smart Cache , up to 5.70 GHz , 24 Cores , 24 Threads )
3.7GHz
( 36 MB Intel® Smart Cache , up to 5.70 GHz , 24 Cores , 24 Threads )
Operating Systems
N/A
Graphics
NVIDIA GeForce RTX 5080 16G ( HDMIx1, Display Portx3 )
Memory
4x DDR5 SDRAM U-DIMM slots
64GB(32GB*2) DDR5 SDRAM 2800(5600)MHz U-DIMM
Max 128GB
64GB(32GB*2) DDR5 SDRAM 2800(5600)MHz U-DIMM
Max 128GB
Storage
1000GB (1000GB*1) PCIe GEN4x4 NVMe M.2 2280 M-KEY SSD
2TB*1 (5400RPM) 2.5 inch 7mm SATA GEN3 HDD
2TB*1 (5400RPM) 2.5 inch 7mm SATA GEN3 HDD
Expansion Slots
1x 3.5" Drive Bays
Audio
7.1 Channel HD Audio
I/O Ports (Rear)
NAx USB 4 (80G) Type C (R)
NAx USB 4 (40G) Type C (R)
NAx USB 4 (20G) Type C (R)
1x USB 3.2 Gen 2x2 (20G) Type C (R)
NAx USB 3.2 Gen 2 (10G) Type C (R)
3x USB 3.2 Gen 2 (10G) Type A (R)
NAx USB 3.2 Gen 1 (5G) Type C (R)
4x USB 3.2 Gen 1 (5G) Type A (R)
NAx USB 2.0 Type C (R)
NAx USB 2.0 Type A (R)
x USB 2.0 Type A (Top)
2x (Thunderbolt 4)x Thunderbolt (R)
1x RJ45
NAx VGA out
NAx HDMI out(v2.0)
x HDMI in
NAx DP out(v1.4)
x Mini DP in
x Mini DP out
NAx PS/2
NAx COM Port
NAx DVI-D out
1x S/PDIF
2x Audio jack
x Line-out (R)
x Mic-in/Headphone-out combo (R)
2x WiFi Antenna
NAx USB 4 (40G) Type C (R)
NAx USB 4 (20G) Type C (R)
1x USB 3.2 Gen 2x2 (20G) Type C (R)
NAx USB 3.2 Gen 2 (10G) Type C (R)
3x USB 3.2 Gen 2 (10G) Type A (R)
NAx USB 3.2 Gen 1 (5G) Type C (R)
4x USB 3.2 Gen 1 (5G) Type A (R)
NAx USB 2.0 Type C (R)
NAx USB 2.0 Type A (R)
x USB 2.0 Type A (Top)
2x (Thunderbolt 4)x Thunderbolt (R)
1x RJ45
NAx VGA out
NAx HDMI out(v2.0)
x HDMI in
NAx DP out(v1.4)
x Mini DP in
x Mini DP out
NAx PS/2
NAx COM Port
NAx DVI-D out
1x S/PDIF
2x Audio jack
x Line-out (R)
x Mic-in/Headphone-out combo (R)
2x WiFi Antenna
Power
ATX 1200W 80PLUS GOLD POWER SUPPLY
Regulatory Compliance
FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)
Color
ID1/Black-Black-Black
Warranty
24months
Part No
9S6-B92111-028
EAN
4711377302036
Marketing Name
MEG Vision X AI 2NVV7-029XRU
CPU Cooler
Liquid cooling
Communications
Wi-Fi 7+BT
Processor
Intel Core Ultra 7 processor 265K
3.9GHz
( 30 MB Intel® Smart Cache , up to 5.50 GHz , 20 Cores , 20 Threads )
3.9GHz
( 30 MB Intel® Smart Cache , up to 5.50 GHz , 20 Cores , 20 Threads )
Operating Systems
N/A
Graphics
NVIDIA GeForce RTX 5080 16G ( HDMIx1, Display Portx3 )
Memory
4x DDR5 SDRAM U-DIMM slots
32GB(16GB*2) DDR5 SDRAM 2800(5600)MHz U-DIMM
Max 128GB
32GB(16GB*2) DDR5 SDRAM 2800(5600)MHz U-DIMM
Max 128GB
Storage
1000GB (1000GB*1) PCIe GEN4x4 NVMe M.2 2280 M-KEY SSD
2TB*1 (5400RPM) 2.5 inch 7mm SATA GEN3 HDD
2TB*1 (5400RPM) 2.5 inch 7mm SATA GEN3 HDD
Expansion Slots
1x 3.5" Drive Bays
Audio
7.1 Channel HD Audio
I/O Ports (Rear)
NAx USB 4 (80G) Type C (R)
NAx USB 4 (40G) Type C (R)
NAx USB 4 (20G) Type C (R)
1x USB 3.2 Gen 2x2 (20G) Type C (R)
NAx USB 3.2 Gen 2 (10G) Type C (R)
3x USB 3.2 Gen 2 (10G) Type A (R)
NAx USB 3.2 Gen 1 (5G) Type C (R)
4x USB 3.2 Gen 1 (5G) Type A (R)
NAx USB 2.0 Type C (R)
NAx USB 2.0 Type A (R)
x USB 2.0 Type A (Top)
2x (Thunderbolt 4)x Thunderbolt (R)
1x RJ45
NAx VGA out
NAx HDMI out(v2.0)
x HDMI in
NAx DP out(v1.4)
x Mini DP in
x Mini DP out
NAx PS/2
NAx COM Port
NAx DVI-D out
1x S/PDIF
2x Audio jack
x Line-out (R)
x Mic-in/Headphone-out combo (R)
2x WiFi Antenna
NAx USB 4 (40G) Type C (R)
NAx USB 4 (20G) Type C (R)
1x USB 3.2 Gen 2x2 (20G) Type C (R)
NAx USB 3.2 Gen 2 (10G) Type C (R)
3x USB 3.2 Gen 2 (10G) Type A (R)
NAx USB 3.2 Gen 1 (5G) Type C (R)
4x USB 3.2 Gen 1 (5G) Type A (R)
NAx USB 2.0 Type C (R)
NAx USB 2.0 Type A (R)
x USB 2.0 Type A (Top)
2x (Thunderbolt 4)x Thunderbolt (R)
1x RJ45
NAx VGA out
NAx HDMI out(v2.0)
x HDMI in
NAx DP out(v1.4)
x Mini DP in
x Mini DP out
NAx PS/2
NAx COM Port
NAx DVI-D out
1x S/PDIF
2x Audio jack
x Line-out (R)
x Mic-in/Headphone-out combo (R)
2x WiFi Antenna
Power
ATX 1200W 80PLUS GOLD POWER SUPPLY
Regulatory Compliance
FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)
Color
ID1/Black-Black-Black
Warranty
24months
Part No
9S6-B92111-029
EAN
4711377302043
Marketing Name
MEG Vision X AI 2NVR7-030XRU
CPU Cooler
Liquid cooling
Communications
Wi-Fi 7+BT
Processor
Intel Core Ultra 7 processor 265K
3.9GHz
( 30 MB Intel® Smart Cache , up to 5.50 GHz , 20 Cores , 20 Threads )
3.9GHz
( 30 MB Intel® Smart Cache , up to 5.50 GHz , 20 Cores , 20 Threads )
Operating Systems
N/A
Graphics
NVIDIA GeForce RTX 5070 Ti 16G ( HDMIx1, Display Portx3 )
Memory
4x DDR5 SDRAM U-DIMM slots
32GB(16GB*2) DDR5 SDRAM 2800(5600)MHz U-DIMM
Max 128GB
32GB(16GB*2) DDR5 SDRAM 2800(5600)MHz U-DIMM
Max 128GB
Storage
1000GB (1000GB*1) PCIe GEN4x4 NVMe M.2 2280 M-KEY SSD
N/A (N/A) N/A N/A HDD
N/A (N/A) N/A N/A HDD
Expansion Slots
1x 3.5" Drive Bays
Audio
7.1 Channel HD Audio
I/O Ports (Rear)
NAx USB 4 (80G) Type C (R)
NAx USB 4 (40G) Type C (R)
NAx USB 4 (20G) Type C (R)
1x USB 3.2 Gen 2x2 (20G) Type C (R)
NAx USB 3.2 Gen 2 (10G) Type C (R)
3x USB 3.2 Gen 2 (10G) Type A (R)
NAx USB 3.2 Gen 1 (5G) Type C (R)
4x USB 3.2 Gen 1 (5G) Type A (R)
NAx USB 2.0 Type C (R)
NAx USB 2.0 Type A (R)
x USB 2.0 Type A (Top)
2x (Thunderbolt 4)x Thunderbolt (R)
1x RJ45
NAx VGA out
NAx HDMI out(v2.0)
x HDMI in
NAx DP out(v1.4)
x Mini DP in
x Mini DP out
NAx PS/2
NAx COM Port
NAx DVI-D out
1x S/PDIF
2x Audio jack
x Line-out (R)
x Mic-in/Headphone-out combo (R)
2x WiFi Antenna
NAx USB 4 (40G) Type C (R)
NAx USB 4 (20G) Type C (R)
1x USB 3.2 Gen 2x2 (20G) Type C (R)
NAx USB 3.2 Gen 2 (10G) Type C (R)
3x USB 3.2 Gen 2 (10G) Type A (R)
NAx USB 3.2 Gen 1 (5G) Type C (R)
4x USB 3.2 Gen 1 (5G) Type A (R)
NAx USB 2.0 Type C (R)
NAx USB 2.0 Type A (R)
x USB 2.0 Type A (Top)
2x (Thunderbolt 4)x Thunderbolt (R)
1x RJ45
NAx VGA out
NAx HDMI out(v2.0)
x HDMI in
NAx DP out(v1.4)
x Mini DP in
x Mini DP out
NAx PS/2
NAx COM Port
NAx DVI-D out
1x S/PDIF
2x Audio jack
x Line-out (R)
x Mic-in/Headphone-out combo (R)
2x WiFi Antenna
Power
ATX 1200W 80PLUS GOLD POWER SUPPLY
Regulatory Compliance
FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)
Color
ID1/Black-Black-Black
Warranty
24months
Part No
9S6-B92111-030
EAN
4711377302050
Marketing Name
MEG Vision X AI 2NVV7-066RU
CPU Cooler
Liquid cooling
Communications
Wi-Fi 7+BT
Processor
Intel Core Ultra 7 processor 265K
3.9GHz
( 30 MB Intel® Smart Cache , up to 5.50 GHz , 20 Cores , 20 Threads )
3.9GHz
( 30 MB Intel® Smart Cache , up to 5.50 GHz , 20 Cores , 20 Threads )
Operating Systems
Windows 11 Home
Graphics
NVIDIA GeForce RTX 5080 16G ( HDMIx1, Display Portx3 )
Memory
4x DDR5 SDRAM U-DIMM slots
32GB(16GB*2) DDR5 SDRAM 2800(5600)MHz U-DIMM
Max 128GB
32GB(16GB*2) DDR5 SDRAM 2800(5600)MHz U-DIMM
Max 128GB
Storage
1000GB (1000GB*1) PCIe GEN4x4 NVMe M.2 2280 M-KEY SSD
1TB*1 (5400RPM) 2.5 inch 7mm SATA GEN3 HDD
1TB*1 (5400RPM) 2.5 inch 7mm SATA GEN3 HDD
Expansion Slots
1x 3.5" Drive Bays
Audio
7.1 Channel HD Audio
I/O Ports (Rear)
NAx USB 4 (80G) Type C (R)
NAx USB 4 (40G) Type C (R)
NAx USB 4 (20G) Type C (R)
1x USB 3.2 Gen 2x2 (20G) Type C (R)
NAx USB 3.2 Gen 2 (10G) Type C (R)
3x USB 3.2 Gen 2 (10G) Type A (R)
NAx USB 3.2 Gen 1 (5G) Type C (R)
4x USB 3.2 Gen 1 (5G) Type A (R)
NAx USB 2.0 Type C (R)
NAx USB 2.0 Type A (R)
x USB 2.0 Type A (Top)
2x (Thunderbolt 4)x Thunderbolt (R)
1x RJ45
NAx VGA out
NAx HDMI out(v2.0)
x HDMI in
NAx DP out(v1.4)
x Mini DP in
x Mini DP out
NAx PS/2
NAx COM Port
NAx DVI-D out
1x S/PDIF
2x Audio jack
x Line-out (R)
x Mic-in/Headphone-out combo (R)
2x WiFi Antenna
NAx USB 4 (40G) Type C (R)
NAx USB 4 (20G) Type C (R)
1x USB 3.2 Gen 2x2 (20G) Type C (R)
NAx USB 3.2 Gen 2 (10G) Type C (R)
3x USB 3.2 Gen 2 (10G) Type A (R)
NAx USB 3.2 Gen 1 (5G) Type C (R)
4x USB 3.2 Gen 1 (5G) Type A (R)
NAx USB 2.0 Type C (R)
NAx USB 2.0 Type A (R)
x USB 2.0 Type A (Top)
2x (Thunderbolt 4)x Thunderbolt (R)
1x RJ45
NAx VGA out
NAx HDMI out(v2.0)
x HDMI in
NAx DP out(v1.4)
x Mini DP in
x Mini DP out
NAx PS/2
NAx COM Port
NAx DVI-D out
1x S/PDIF
2x Audio jack
x Line-out (R)
x Mic-in/Headphone-out combo (R)
2x WiFi Antenna
Power
ATX 1200W 80PLUS GOLD POWER SUPPLY
Regulatory Compliance
FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)
Color
ID1/Black-Black-Black
Warranty
24months
Part No
9S6-B92111-066
EAN
4711377336208
